Connect lets you monitor and adjust file transfer speed from the Transfer Monitor window.
To monitor a transfer session shown in the Activity window, click the icon shown

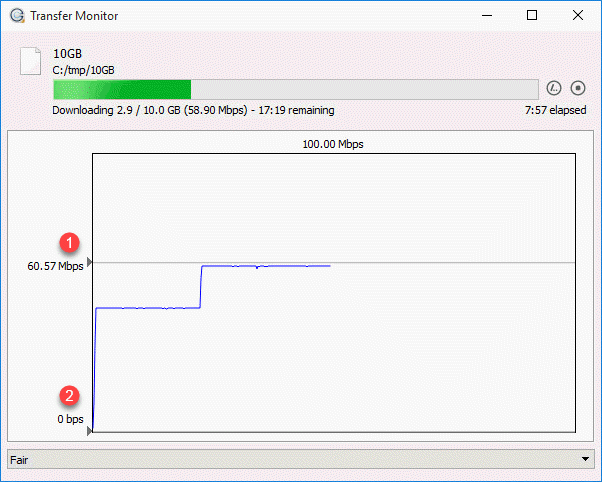

with the session. The Transfer Monitor opens:
The following controls are available in this window:
- Open the folder on your computer that contains this content.
-
Stop the transfer.
- Resume a stopped transfer, or retry a failed transfer.
If you have sufficient server privileges and your transfer server is configured to allow
it, you can adjust or set your desired transfer rate, minimum transfer rate, and rate
policy. However, actual performance is subject to the available bandwidth on your
network as well as the transfer settings on your server:
- Target transfer rate – To adjust the transfer rate, locate and select the upper slider on the left side of the graph and move it up or down to
change the desired rate. Note that the actual rate depends on several factors.
- Minimum transfer rate – To set the minimum transfer speed, locate and select the bottom
slider on the left side of the graph and move it up or down to
set the desired rate. The actual minimum rate depends on several factors.
- Transfer policy – Select the transfer policy from the drop-down list at the bottom of the
window. Note that your specified rate policy may be subject to external limitations:
- Fixed
- The transfer transmits data at a rate equal to the target rate, although
this may impact the performance of other traffic present on the
network.
- High
- The transfer rate is adjusted to use the available bandwidth up to the
maximum rate.
- Fair
- The transfer attempts to transmit data at a rate equal to the target
rate. If network conditions do not permit that, it transfers at a rate
lower than the target rate, but no less than the minimum rate.
- Low
- The transfer rate is less aggressive than Fair when sharing bandwidth
with other network traffic. When congestion occurs, the transfer rate is
decreased to the minimum rate, until other traffic retreats.
- Additional options – Right-clicking in the area above the graph opens the same menu
as doing so in the Activity window, giving options such as stop or remove transfers,
and open the transfer's containing folder.
