Adding Azure Node to File Storage

Navigate to Server > File Storage > Add New Node from the Console menu.

Fill in the following details:

Field	Description
Name	Unique name to identify the remote node.
Use SSL	To encrypt the connection to the node using SSL, enable this box. For details, see Setting up SSL for Faspex Nodes.
Verify SSL Certificate	To verify the SSL certificate, enable this box.
Host	The node's hostname or IP address. CAUTION: To avoid connectivity problems, do not specify a hostname that contains underscores.
Port	The node's port number.
Username	The node API username that was created when Aspera Enterprise or Aspera Connect Server 3.0+ was set up on the node machine.
Password	The node API password that was created when Aspera Enterprise or Aspera Connect Server 3.0+ was set up on the node machine.
Storage type	Specify whether you are connecting to a node using Windows Azure or Windows Azure SAS storage. If you are not connecting to such a node, choose Default.

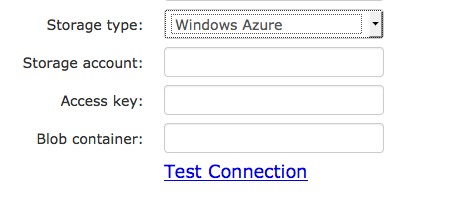

If you chose Windows Azure, enter your Windows Azure account credentials.

Field	Description
Storage account	The name of the storage account you want to connect to Faspex.
Access key	Your Windows Azure access key.
Blob container	The blob container that acts as the location that will receive transferred files.

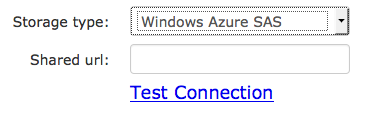

If you chose Windows Azure SAS, enter your Windows Azure SAS URL.

Test that the node is connected by selecting Test Connection.

(Optional) Designate a primary transfer addres or configure a secondary IP address to allow users to start transfers from different IP addresses.

Select Advanced Configuration.

Create the node.

Select Create to simply create your node.
Select Create and Add File Storage to create your node and proceed to add file storage to your node. For more information on file storage and instructions on how to add it to your node, see Adding File Storage on your Remote Server.
