Adding and Editing Connections

To transfer with HST Server, HST Endpoint, IBM Aspera Shares, IBM Aspera on Cloud transfer service (AoCts), or an IBM Aspera Transfer Cluster Manager node, add it as a connection in the Connection Manager. The following instructions describe how to create and configure a connection and edit or delete connections.

1. Start the application.

   # asperascp

2. To open the Connection Manager, click Connections.

3. Click to create a new connection.


   Click to duplicate a selected connection (to copy all information into a new profile) and to delete a connection profile.

4. Configure the connection name, if desired.
   By default, connections are named username@host.

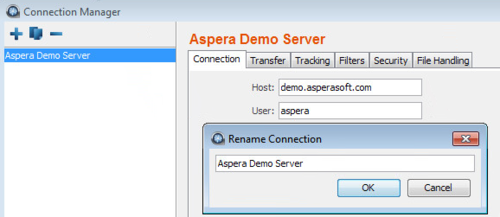

   To name or rename a connection, click the connection name and enter the new name in the pop-up. Click OK to save your changes.




5. Configure the required settings for the connection.

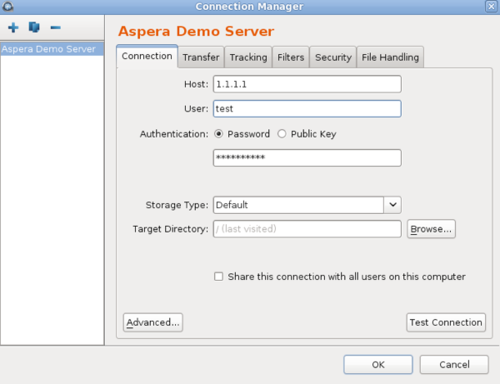

   On the Connection tab, enter the following information. In most cases, only Host, User, and Authentication are required.

   Connection Option	Description
   Host	The server's address, such as 192.168.1.10 or companyname.com. For Shares, Node API, or AoCts connections, enter the URL and port for asperanoded, such as https://ats-aws-us-west-2.aspera.io:443.
   User	The transfer user's username, the Shares user, Node API credentials, or an access key ID.
   Authentication	The authentication method. Select Password to authenticate with the transfer user's password, the Shares user's password, the Node API user password, or an access key secret (such as for AoCts or ATC Manager). Select Public Key to authenticate with the transfer user's public SSH key. For more information, see Creating SSH Keys in the GUI and .
   Storage Type	The default option is local storage. Use this option to connect to: on-premises servers AoCts cloud-based servers when the transfer user has the storage credentials configured in their docroot on the server When the server is in the cloud but the storage credentials are not configured in the transfer user's docroot, use the drop-down menu to select the object storage type and enter credentials. Supported object storages include the following: Akamai NetStorage Amazon S3: Requires your Access Id, Secret Access Key, and bucket path. The local machine must be reasonably time-synchronized in order to communicate with the Amazon servers. You can also select the Advanced button to modify the following settings: Host: Amazon S3 hostname (default: s3.amazonaws.com). Port: Default is port 443. HTTPS connection for file browsing: Enable for secure browsing. Server-side file encryption: Enable for AES256 encryption. Reduced redundancy storage class: Assign objects to a to the "reduced redundancy" storage class (durability of 99.99%). Google Storage: Requires your Project Number and bucket path. Limelight: Requires your Account, Username, and Password. Windows Azure: Requires your Storage Account and Access Key. Azure storage is set to use the Azure block blob REST API by default. To specify the REST API for page blobs, enter your account credentials then click Advanced. Select PAGE from the drop-down menu next to Api and click OK. Windows Azure SAS: Requires your Shared URL. Azure Files: Requires your File service endpoint and password.

6. Configure other connection settings, if needed.
   On the Connection tab, configure non-default connection settings by editing any of the following settings:

   Connection Option	Description
   Target Directory (or Bucket Path for most object storage)	The default directory when connecting to this computer. When left blank, browsing the remote host brings up either the user's docroot or the last-visited folder. When a path is set, the connection opens to the exact directory.
   Share this connection	Available only when running the application as Administrator. Select to share this connection with other users on your computer. When a connection is authenticated through public key, the SSH keys used by this connection should be shared as well. For more information, see Creating SSH Keys in the GUI.
   Advanced Settings > SSH Port (TCP)	The TCP port for SSH connections. Default: 33001. If the application cannot connect on 33001, it automatically attempts a connection on port 22. If the connection on 22 succeeds, the setting is updated to 22.
   Advanced Settings > FASP Port (UDP)	The UDP port for FASP transfers. Default: 33001.
   Advanced Settings > Connection Timeout	Time out the connection attempt after the specified time.
   Test Connection	Click to test the connection to the remote server with the settings you configured.

7. Configure the connection's transfer settings, if needed.
   On the Transfer tab, configure non-default transfer settings by editing any of the following settings:

   Transfer Option	Description
   Transfer Name	Select from the following options: Automatically generate allows the user interface to generate the transfer name; Automatically generate and add prefix uses auto-generated name with a customizable prefix; Specify uses the user-specified name.
   Policy	Select the FASP transfer policy. high - Adjust the transfer rate to fully utilize the available bandwidth up to the maximum rate. When congestion occurs, the transfer rate is twice as fast as a fair-policy transfer. The high policy requires maximum (target) and minimum transfer rates. fair - Adjust the transfer rate to fully utilize the available bandwidth up to the maximum rate. When congestion occurs, bandwidth is shared fairly by transferring at an even rate. The fair policy requires maximum (target) and minimum transfer rates. low - Adjust the transfer rate to use the available bandwidth up to the maximum rate. Similar to fair mode, but less aggressive when sharing bandwidth with other network traffic. When congestion occurs, the transfer rate is reduced to the minimum rate until other traffic decreases. fixed - Attempt to transfer at the specified target rate, regardless of network or storage capacity. This can decrease transfer performance and cause problems on the target storage. Aspera discourages using the fixed policy except in specific contexts, such as bandwidth testing. The fixed policy requires a maximum (target) rate.
   Speed	Select Override default transfer rate settings to specify the transfer rate. The target rate is constrained by the global bandwidth settings; for more information, see Global Bandwidth Settings.
   Retry	Select to automatically retry the transfer after a recoverable failure for a set amount of time, in seconds, minutes or hours. You may set the initial and maximum retry intervals by clicking the More Options button. Initial interval: The first retry waits for the initial interval. Input in seconds, minutes or hours. Maximum interval: After the initial interval, the next interval doubles until the maximum interval is met, and then stops retrying after the retry time is reached. Input in seconds, minutes or hours. For example, if the retry is set for 180 seconds, the initial interval is 10 seconds, and the maximum interval is 60 seconds, then the transfer will retry at 10, 30, 70, 130, and 180 seconds after the first try, such that the interval progression is 10, 20, 40, 60, 60, and 50 seconds. The last interval is not the maximum because the retry period ends with a final retry. As another example, if the retry is set for 600 seconds, the initial interval is 30 seconds, and the maximum interval is 120 seconds, then the transfer will retry at 30, 90, 210, 330, 450, 570, and 600 seconds after the first try, such that the interval progression is 30, 60, 120, 120, 120, 120, and 30 seconds. Again, the last interval is not the maximum because the retry period ends with a final retry.
   Show Advanced Settings	Click Show Advanced Settings to edit the following options: Specify FASP datagram size (MTU): By default, the detected path MTU is used. Select to specify a value between 296 and 10000 bytes. Disable calculation of source files size before transferring: Select to turn off job size calculation on the client side, if allowed by the server.

8. Configure tracking and email notifications, if needed.
   On the Tracking Tab, configure non-default transfer settings by editing any of the following settings:

   Tracking Option	Description
   Generate delivery confirmation receipt	Select to create a delivery receipt file in the specified location.
   Send email notifications	Send email notifications based on specified events (start, complete, and error). See Using Transfer Notifications for more information.

9. Configure filters to automatically exclude certain files from transfers with this connection, if needed.
   On the Filters tab, click Add and enter the pattern to exclude files or directories with the specified pattern in the transfer. The exclude pattern is compared with the whole path, not just the file name or directory name. Two special symbols can be used in the setting of patterns:

   Filter Symbol	Name	Description
   *	Asterisk	Represents zero to many characters in a string, for example *.tmp matches .tmp and abcde.tmp.
   ?	Question mark	Represents one character, for example t?p matches tmp but not temp.

   For more information on filter rule syntax, see Using Filters to Include and Exclude Files.

10. Configure security settings, if needed.
    On the Security tab, configure non-default transfer settings by editing any of the following settings:

    Security Option	Description
    Encryption	Select the encryption cipher. Aspera supports three sizes of AES cipher keys (128, 192, and 256 bits) and supports two encryption modes, cipher feedback mode (CFB) and Galois/counter mode (GCM). The GCM mode encrypts data faster and increases transfer speeds compared to the CFB mode, but the server must support and permit it. Cipher rules The encryption cipher that you are allowed to use depends on the server configuration and the version of the client and server: When you request a cipher key that is shorter than the cipher key that is configured on the server, the transfer is automatically upgraded to the server configuration. For example, when the server setting is AES-192 and you request AES-128, the server enforces AES-192. When the server requires GCM, you must use GCM (requires version 3.9.0 or newer) or the transfer fails. When you request GCM and the server is older than 3.8.1 or explicity requires CFB, the transfer fails. When the server setting is "any", you can use any encryption cipher. The only exception is when the server is 3.8.1 or older and does not support GCM mode; in this case, you cannot request GCM mode encryption. When the server setting is "none", you must use "none". Transfer requests that specify an encryption cipher are refused by the server. Cipher Values Value Description Support AES-128 AES-192 AES-256 Use the GCM or CFB encryption mode, depending on the server configuration and version (see cipher negotiation matrix). All client and server versions. AES-128-CFB AES-192-CFB AES-256-CFB Use the CFB encryption mode. Clients version 3.9.0 and newer, all server versions. AES-128-GCM AES-192-GCM AES-256-GCM Use the GCM encryption mode. Clients and servers version 3.9.0 and newer. NONE Do not encrypt data in transit. Aspera strongly recommends against using this setting. All client and server versions. Client-Server Cipher Negotiation The following table shows which encryption mode is used depending on the server and client versions and settings:   Server, v3.9.0+ AES-XXX-GCM Server, v3.9.0+ AES-XXX-CFB Server, v3.9.0+ AES-XXX Server, v3.8.1 or older AES-XXX Client, v3.9.0+ AES-XXX-GCM GCM server refuses transfer GCM server refuses transfer Client, v3.9.0+ AES-XXX-CFB server refuses transfer CFB CFB CFB Client, v3.9.0+ AES-XXX GCM CFB CFB CFB Client, v3.8.1 or older AES-XXX server refuses transfer CFB CFB CFB
    Content Protection	Select Encrypt uploaded files with a password to encrypt the uploaded files with the specified password (client-side encryption at rest). The protected file has the extension .aspera-env appended to the file name. Anyone downloading the file must have the password to decrypt it. Select Decrypt password-protected files downloaded to prompt for the decryption password when downloading encrypted files. Note: When a transfer falls back to HTTP or HTTPS, content protection is no longer supported. If HTTP fallback occurs while uploading, then the files are NOT encrypted. If HTTP fallback occurs while downloading, then the files remain encrypted. For more information about client-side encryption at rest, see Client-Side Encryption-at-Rest (EAR).

11. Configure file handling, if needed.
    On the File Handling tab, configure non-default transfer settings by editing any of the following settings:

    File Handling Option	Description
    Resume	Select Resume incomplete files to enable the resume feature. Select the file comparison method from the When checking files for differences drop-down menu: Compare file attributes - Compares the sizes of the existing and original file. If they are the same, then the transfer resumes, otherwise the original file is transferred again. Compare sparse file checksums - Performs a sparse checksum on the existing file and resumes the transfer if the file matches the original, otherwise the original file is transferred again. (Default) Compare full file checksums - Performs a full checksum on the existing file and resumes the transfer if the file matches the original, otherwise the original file is transferred again. Under When a complete file already exists at the destination, select an overwrite rule when the same file exists at the destination. By default, files on the destination are overwritten if different from the source.
    File Attributes	Select Preserve Access Time to set the access time of the destination file to the same value as that of the source file. Select Preserve Modification Timeto set the modification time of the destination file to the same value as that of the source file. Select Preserve Source Access Time to keep the access time of the source file the same as its value before the transfer. Note: Access, modification, and source access times cannot be preserved for node and Shares connections that are using cloud storage.
    Source Handling	Select Automatically delete source files after transfer to delete the files that transferred successfully from the source. Select Automatically move uploaded source files to a directory after transfer and specify the location on the source machine to which they should be moved. Only a path to an existing location on the client can be specified. Select Delete empty source subdirectories to remove empty subdirectories from the source once the files that they contain transfer successfully. This option is usually used to clean up the Hot Folder when source files are moved or deleted after transfer.

12. Click OK to save your changes.
    Changes are not saved until you click OK. Selecting Cancel will discard any unsaved changes made in the Connection Manager, including the addition and removal of connections.
13. Connect to the remote host.
    Double-click the connection name, or select it and click Connect.
